Factory Supply Rock Splitter Hydraulic Large Rock Splitting Machine for Mining

• Overview
• Product Description
• Product Parameters
• Product Features
• Applications
• Company Profile
• Packaging & Shipping
• FAQ

Overview

Basic Info.

Model NO.	SFST150
Condition	New
Warranty	1 Year
After-sales Service	Video Call Service and on Site Service
Product Name	Rock Splitter
Hole Diameter	150mm
Length	850mm
Pressure	110 MPa
Piston Number	8
Piston Length	33mm
Transport Package	Wooden Cases
Specification	850*150*150mm
Trademark	SFST
Origin	China
Production Capacity	1000000 Sets

Packaging & Delivery

Package Size90.00cm * 10.00cm * 10.00cm Package Gross Weight100.000kg

Product Description

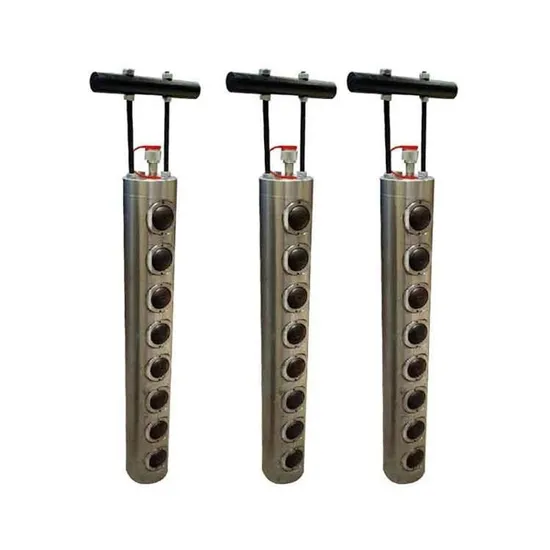

Piston rock splitter description


Piston rock splitter is composed of a cylinder, 9-11 pistons, multiple seals, multiple high-pressure tubing and other components. Piston rock splitter is divided into an inlet pipe and a return pipe. The Piston of the Piston rock splitter will extend when the oil is fed. This is the working process of the Piston rock splitter, that is, the time when the rock breaks. The power source of Piston rock splitter is the hydraulic oil transmitted by the hydraulic power station through the tubing, which can reach 120Mp and the theoretical splitting force is 1200tons.

1.Piston rock splitter can be controlled to work in the static hydraulic environment, which will not produce some dangerous hidden dangers like other impact dismantling and drilling equipment, without taking complicated measures.
2. When Piston rock splitter works, it will not produce vibration, impact, noise, dust, flying debris, etc. The surrounding environment will not be affected. Even in densely populated areas or indoors, and next to sophisticated equipment, it can work without interference.
3. The Piston rock splitter can be completed in a few seconds. The Piston rock splitter can operate continuously without interruption. Piston rock splitter is low cost to run and maintain.

1. Piston rock splitter can be used for mining stone: granite, marble, sandstone, limestone and so on.
2. Piston rock splitter can be used for metal ore, non-metal ore, coal mining.
3. Piston rock splitter can be used for mining large blocks of stone: it can realize the secondary splitting and fracturing of a block of several thousand cubic meters.


Shaanxi Saifusite Mechanical Electrical Equipment Co., Ltd. is a professional engaged in hydraulic mining equipment, hydraulic construction machinery and equipment, ultra-high pressure pumping station, oil cylinder research, development, manufacturing and other enterprises.
At present, Shaanxi Saifusite Mechanical Electrical Equipment Co., Ltd. produces various types of splitting gun, splitting rod, splitting machine, digging and drilling machine, electric hydraulic pump, high pressure cylinder, high pressure jack, synchronous lifting equipment, crushing hammer and other hydraulic machines and tools.
Shaanxi Saifusite Mechanical Electrical Equipment Co., has decades of experience in ultra-high voltage equipment. No matter today or in the future, it is absolutely a reliable and excellent brand.

Q1: Warranty terms of your machine?
A1: One-year warranty for the machine and technical support according to your needs.

Q2: Will you provide some spare parts for the machines?
A2: Yes, of course.

Q3: What about the voltage of products? Can they be customized?
A3: Our standard voltage is 380V, 50HZ, and 3phase. The voltage can be customized according to your equipment.

Q4: Which payment term can you accept?
A4: 100% T/T( Decide according to actual situation)

Q5: How long will it take to arrange production?
A5: we can deliver the normal goods within 3-5 working days. Other nonstandard electrical items we will deliver within 25-30 days.

Q6: Can you accept OEM orders?
A6: Yes, with a professional design team, OEM orders are highly welcome.

Q7: Which trade term can you accept?
A7: Available trade terms: FOB, CIF, CFR, EXW, etc.

Product Description

Product Parameters

Model	SFST90	SFST100	SFST110	SFST130	SFST150	SFST170	SFST180	SFST200
Stroke (mm)	15	22	25	23	33	34	32	50
Diameter (mm)	87	100	112	130	153	174	200	200
Length (mm)	650	820	850	850	850	900	950	1100
hole depth (mm)	850	1050	1050	1050	1050	1100	1200	1350
Pistion number	9	11	8	9	8	8	8	8
Working presure (Mpa)	110	110	110	110	110	110	110	110
