Hydraulic Rock Splitter in Mining Use

• Overview
• Product Description
• Product Parameters
• Detailed Photos

Overview

Basic Info.

Model NO.	YG-350
Certificate	ROHS, FCC, IQNET, GOST, CE, ISO
Condition	New
Products Name	Rock Splitter Machine
Splitting Force (T)	500t
Splitter Quantity	1 PC
Transport Package	Packed in Wooden Box, Ship by Sea
Specification	4000*2000*1800mm
Trademark	OEM
Origin	China
Production Capacity	500 PCS Per Month

Product Description

Rock splitting machine is a kind of machine used to split rocks. It is mostly used in construction, decoration, engineering
construction, ore mining operations, secondary disintegration of large ore, and partial and complete demolition of concrete
components. Safe, fast, adjustable oil pressure.

Rock Splitter started, the pumping station outputs high-pressure oil to drive the cylinder to generate huge thrust. When the
high-pressure oil output by the hydraulic station pushes the middle wedge of the splitting gun forward, it will spread the side
wedge to both sides, and split the object to be split in a predetermined direction in a short time.

Product Description Product Parameters

Model	YG-250	YG-350	YG-450
Wedge length (mm)	250	350	450
Piston stroke (mm)	90/220mm	90/220mm	90/220mm
Punching depth (mm)	>500mm	>700mm	>900mm
Punch diameter (mm)	42mm	46mm	46mm
Crack width (mm)	10-20mm	10-20mm	10-20mm
Splitting time (s)	10-15/s	10-15/s	10-15/s
Splitting force (T)	500t	800t	800t
Weight (kg)	30kg	30kg	30kg

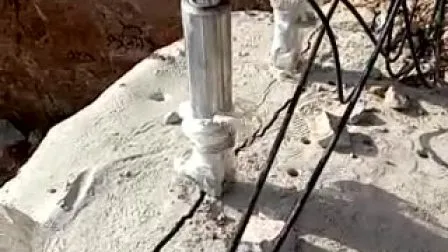

Detailed Photos
