Basic Info.

Model NO.	Rock Splitte
Condition	New
Warranty	Support
After-sales Service	Support
Name	Rock Splitter
Piston Diameter	80mm
Drilling Diameter	42mm
Crack Width	10-40mm
Spliting Time	5-15s
Usage	Muntain, Rock, Stone, etc
Splitter Gun Weight	30kg
Splitting Pump Engine	Electric, Gasoline, Diesel
Spliting Force	600t
Splitting Pump Weight	65kg
Transport Package	Standard Export Package
Specification	1.2CBM
Trademark	Hengwang
Origin	China
HS Code	8467890000
Production Capacity	1000 Sets Per Month

Packaging & Delivery

Package Size80.00cm * 80.00cm * 80.00cm Package Gross Weight25.000kg

Product Description

Hydraulic Splitting Machine Parameter

For more parameters, please click:https://hengwang.en.made-in-china.com/contact-info.html

Stone Splitter Machine hydraulic rock splitter for sale
1. Hydraulic rock splitter is maninly composed of power pump pack and hydraulic cylinder. Mainly applicable to the secondary breaking

2. First drill hole in stone, then insert hydraulic cylinders which is contain wedge and feathers, Start engine to provide hydraulic pressure

3. Repeat the process until the whole structure is fractured into smaller sections and ready for removal.

Rock Splitter Advantages:

1. Enormous splitting force up to 500 tons & vibration free

2. Dust free and near silent operation & Light weight and Easy handling

3. Different sizes of counter wedge and center wedge can use on the same splitter

Rock Splitter Application:

1. Split all kinds of natural stones, rock, granite, marble mining & quarrying

2. Remove redundant reinforced concrete structures, concrete machine beds and plinths etc

3. Underwater demolition & Demolition in a restricted space

4. Controlled demolition of pillars, concrete and walls where heavy equipment is impractical

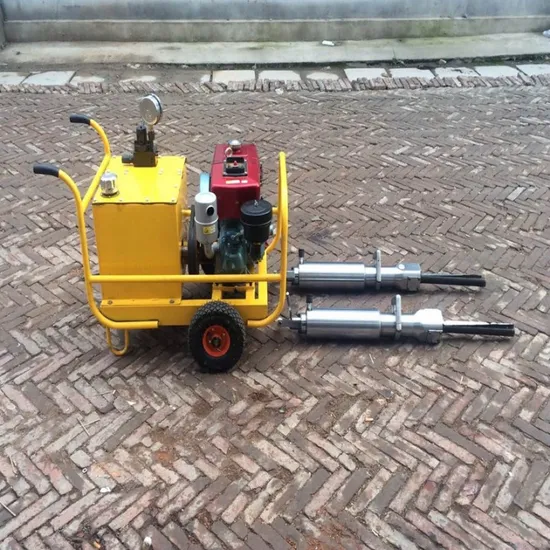

Rock Splitting Machine Photos
Our Company

Exhibition

For a quote, please click Inquiries:https://hengwang.en.made-in-china.com/contact-info.html

Rock spliter gun parameters
Model	HW80-250	HW80-350	HW80-450	HW90-250	HW90-350	HW90-450
piston diameter	80mm	80mm	80mm	90mm	90mm	90mm
drilling diameter	Φ42mm	Φ45mm	Φ50mm	Φ42mm	Φ45mm	Φ50mm
drilling depth	>=500mm	>=550mm	>=600mm	>=500mm	>=550mm	>=600mm
Wedge length	250mm	350mm	450mm	250mm	350mm	450mm
crack width	10~40mm	10~40mm	10~40mm	10~40mm	10~40mm	10~40mm
splitting time	5~15s	5~15s	5~15s	5~15s	5~15s	5~15s
Theory of separatist force	600T	600T	600T	800T	800T	800T
The actul split force	480T	480T	480T	480T	480T	480T
weight	28Kg	29K	30Kg	31Kg	32Kg	33kg
Splitting Pump Parameter
Engine	Electricity engine			Gasoline engine
weight	60kg	110kg	150kg	100kg	130kg	150kg
capacity of tank	40L	60L	88L	45L	65L	90L
motor power	3.0KW	5.5KW	7.5KW	4Hp	7Hp	7.5Hp
working pressure(Mpa)	55-60	55-60	55-60	55-60	55-60	55-60
working flow(L/min)	2-13	2-13	2-13	2-13	2-13	2-13
configurable guns number	1-5	2-7	2-10	1-3	3-8	3-10
